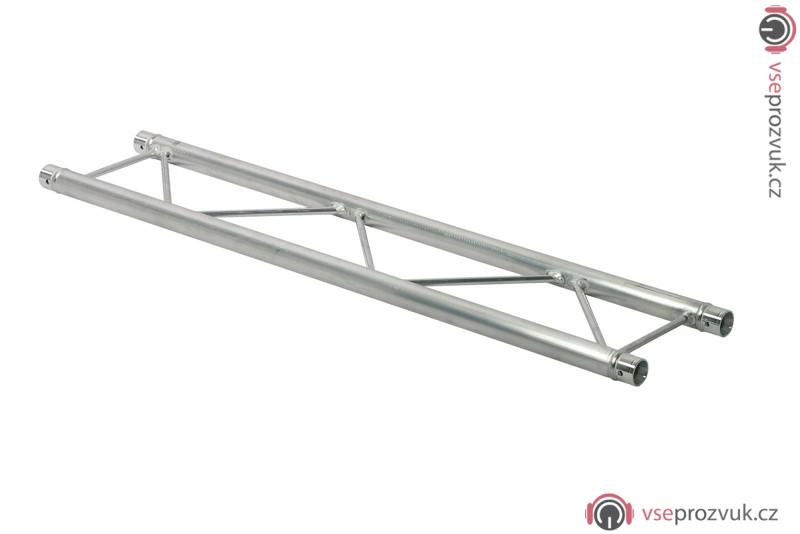

DECOLOCK DQ2 2-point truss systemDECOLOCK DQ2 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The two main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to it
Technické parametry
| Trusspipe | 35 mm x 2 mm |
| Color | Alu colored |
| Trusspipe | 35 x |
| Welding material | AlMg 5 |
| Welding technique | TIG-welding |
| Strut diameter x thickness | 10 x 2mm |
| Length | 500 mm |
| Width | 220 mm |
| Height | 35 mm |
| Weight | 0,899 kg |
