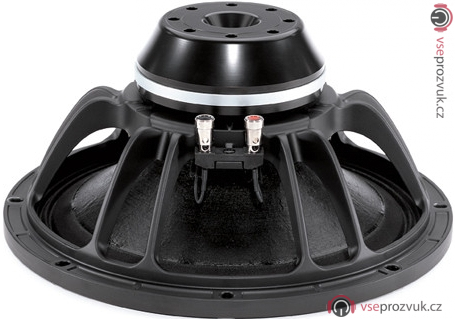

B&C Speakers 12NW76 8/ohm
reproduktor 12 , 500W, 98, 5dB, 40-2000Hz, X-max 8, 0mm, hmotnost 4, 8kg ... Více
| rozměr: | 12" " |
|---|---|
| impedance: | 8 ohm |
| dostupné impedance: | 4 8 ohm |
| citlivost: | 98,5 dB/W/m |
| příkon: | 500 W |
| rozsah: | 40 ÷ 2 000 Hz |
| Fs: | 40 Hz |
| Re: | 5,30 ohm |
| Le: | 1,25 mH |
| L1: | 1,02 mH |
| L2: | 1,37 mH |
| R2: | 3,97 ohm |
| Qms: | 3,70 |
| Qes: | 0,170 |
| Qts: | 0,160 |
| Vas: | 76 litr |
| Mms: | 77 gram |
| Cms: | 199 um/N |
| Bl: | 25,5 Tm |
| No: | 2,80 % |
| SPLref: | 96,5 dB |
| EBP: | 235 |
| Sd: | 522 cm2 |
| Vd: | 418 cm3 |
| Xmax: | 8,00 0/pk mm |
| Xvar: | 10,00 mm |
| Hvc: | 19,00 mm |
| Hag: | 11,00 mm |
| otvor: | 283 mm |
| indukce: | 1,30 T |
| cívka: | Cu 76 k mat./mm |
| magnet: | NdFeB |
| materiál koš/kryt: | Al |
| hmotnost: | 4,80 kg |
reproduktor 12", 500W, 98,5dB, 40-2000Hz, X-max 8,0mm, hmotnost 4,8kg
