Nabíjecka urcená pro nabíjení 12.8V (4 Cell) LiFePO4 baterií s kapacitou 4Ah Více

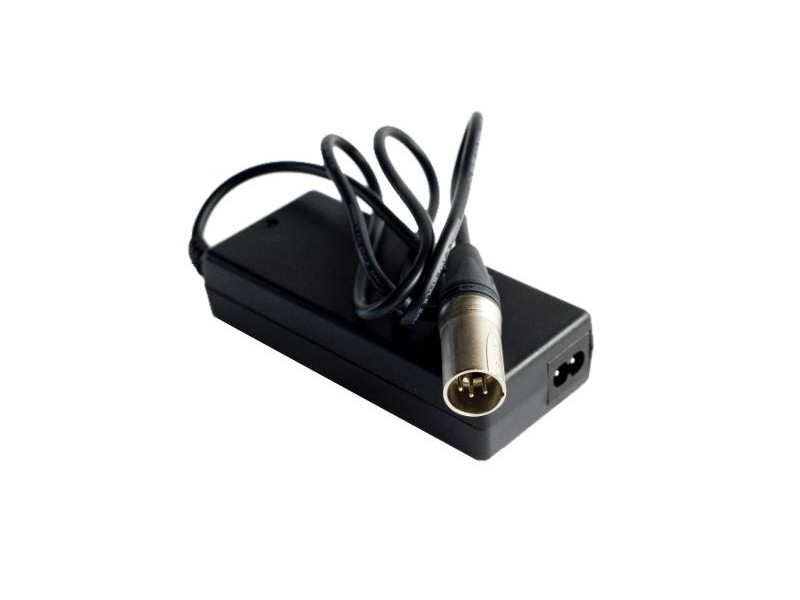

This Smart Charger is designed to charge 12.8V (4 Cells) LiFePO4 batteries with a capacity > 4Ah. It features a three stages charging method ( Constant Current, Constant Voltage , Trickle charge mode) without overcharging the battery . An XLR4 male connector is fitted to mate directly with our LiFePo4 batteries. An Internal Resettable fuse is installed inside the charger : there is no need to change the fuse after en over-load current cut-off.
This charger is fully compatible with our LiFePo4 battery range : eSMART LiFe-115Wh , LiFe-256Wh and LiFe-512Wh
For charging the eSMART LiFe-512Wh battery we recommend using our eLC-PO10 10A charger.
Specifications :
INPUT
- AC input voltage 90 to 240 VAC Worldwide power support
- Input frequency 50/60Hz
- Input Current Max 1.5A
CHARGE
- The Battery range is between 4AH to 20AH
- Max. charging current: 4A
OUTPUT
- 15V 4.0A
- XLR4M output connect
LED indicator
- Red LED = Charging (0-99%)
- Green LED = Fully charged (100%)
Weight: 320grams
