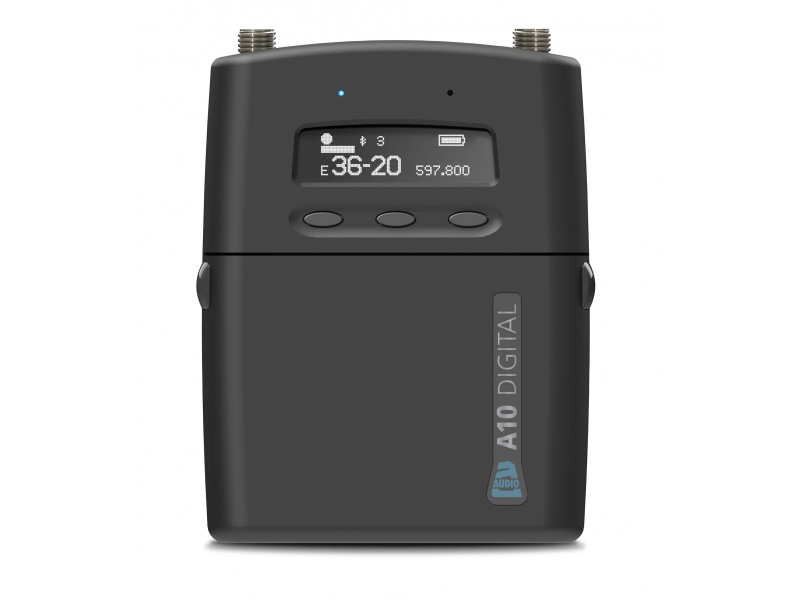

The A10-TX transmitter is the heart of the A10 Digital Wireless System. And the core of the A10-TX transmitter is its low-noise, high-dynamic-range analog input. It accepting signals from low-level lavalier microphones to balanced line-level. The 3-pin LEMO input offers analogue limiters, 5 volt bias for lavalier microphones, as well as 12 and 48 volt phantom power for balanced microphones.
A timecode-enabled audio recorder is integrated into the A10-TX. It records monophonic timecode-stamped files to removable microSD cards.
- Low-noise, studio-grade balanced input for microphones and line level inputs with analogue limiter and 48 V phantom power
- Integrated digital audio recorder with ultra-accurate timecode generator
- Records to removable microSD cards
- Simultaneous wireless transmission and recording (simultaneous recording and wireless transmission is not available on systems sold in the U.S.)
- Remote controllable over Bluetooth® using the A10 Remote app for Android and iOS
The A10-TX transmitter includes an integrated high-quality digital audio recorder. Audio sources connected to the A10-TX can be recorded to removable FAT32 formatted microSD cards. Files are recorded to Audio Ltd's proprietary, data-compressed ".mic" file format. These .mic files incorporate timecode from the A10-TX timecode generator.
Audio Ltd's Mac OS and Windows software utility mic2wav converts .mic files into monophonic, 24-bit, 48 kHz broadcast WAV files with its associated timecode.
| Frekvencní rozsah VF | 470-548MHz |
| Hmotnost | 104 g |
| Napájení | 2 x 1.5V LR6 AA size, lithium, NiMH, or alkaline |
| Rozmery | 83 x 64 x 18 mm |
| Vstupy | 3 pin Lemo (series 00) |
| Frekvencní rozsah | 20 Hz–20 kHz |
| RF Výstup | 10 mW, 20 mW, 50 mW, selectable |
| Provozní teplota | -10 °C to +55 °C |
