| hmotnost brutto: | 32,5 kg |
|---|---|
| počet - mono vstupy: | 24 |
| polarita - mono vstupy: | ano |
| fantom - mono vstupy: | 48 V/i |
| pad - mono vstupy: | 20 dB |
| HPF - mono vstupy: | 100 Hz |
| EQ - mono vstupy: | 2+2 semi |
| insert - mono vstupy: | TRS |
| insert + Direct Out - mono vstupy: | 24+split |
| busy: | 19 |
| mono auxy - pre/post/univ.: | 0+0+16 |
| stereo auxy - pre/post/univ: | 0+0+(8) |
| master: | L,R,M |
| mute group: | 4 |
| EQ out: | 2 semi |
| TB: | ano |
| test: | ano |
| hlavní zdroj: | RPS11 |
| záložní zdroj: | RPS11 |
| rozměry: | 944×650×170 mm |
| hmotnost: | 27,75 kg |
| hlavní fadery: | 100 mm |
| další fadery: | 100 mm |
Features:
- 24, 32, 40 and 48 channel frame sizes
- 16 mixes globally assigned as mono or stereo with level and pan

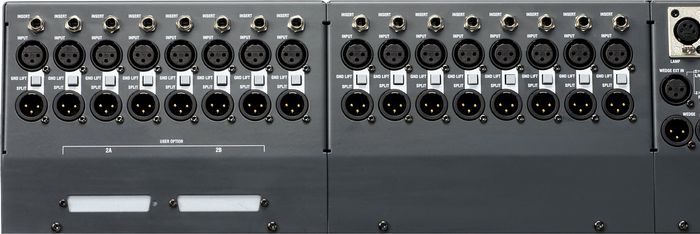

- Built-in mic splitter with ground lift switching
- All masters include polarity switch, swept HPF and 6dB dim function
- Mix 1-8 include 2 band swept frequency output EQ
- Engineer’s IEM and wedge monitors with faders, meters, inserts and XLR
- IEM/wedge monitor external inputs for FOH comms and IEM rack monitoring
- Mix AFL assignable to either wedge or IEM monitor
- PAFL logic includes PFL override AFL, mono/stereo AFL, PFL to wedge enable
- Headphones follow IEM mode, includes 1” and 3.5mm jacks
- Talkback with independent selection to all mixes and external output
- Talk latch mode for use with switched hand held talkback mic
- Built-in oscillator/ pink noise generator assignable to any mix output
- Built-in dual supply combiner for additional power supply as a backup
- 4 mute groups
- Uses RPS11 linear power supply unit
- Same chassis as GL2800
- Compact footprint ideal for flight casing and saving space at side of stage
- Solid, individual card, nutted pot construction in a no nonsense all steel chassis
- The best of analogue - great sound, reliable and easy to use
Jeden zdroj RPS11 součástí produktu, možnost přikoupit druhý, záložní.
